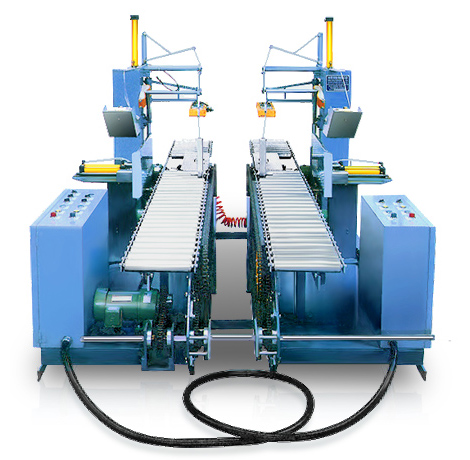

SY-905 FULL AUTO TYING MACHINE for large size carton and paper board
This tying machine is operated simply without any technician.
You may save lots of time and label cost during the operation because of equipping with the motorized conveyor in front of the tying machine.
The torque limiter is installed inside the shaft of the driving motor for the safety concerned. It's much safer and won't cause any damage inside your machine owing to the wrong operation while the motor Idles in operation.
The size of your carton boxes and paper boards can be adjusted randomly any time.
The new piece of design has been awarded a patent by the CNS bureau (patent no.31317), which is Taiwan Chinese National Standard belonging to Taiwan Government Authority.
This machine is equipped with #50 PE tying tape and the tying process is fully automatic. (1125 m/kg, 5 kgs/Roll)
The SY-905 are built to last performing simplicity, precision, and efficiency.
Model    SY-905
Power     4HP (AC220V/380V 50/60Hz 3Pole)
Tying capacity     15 times/min.
Required air Pressure     4-6kg/cm2
Machine size     3100 x 1800 x 1850mm
Measurement     3250 x 1100 x 1950mm x 2 Sets
N.W. / G.W.     2000kgs / 2300kgs
Auto PE tying     #50
Remarks : Specifications listed above are for reference only and be subjected to changes without any prior notice.


  For large size carton and paper board.
Item   A B C D E
Max   2800 1750 260 2300 150
Min   600 300 50 300 100
Unit : mm

  Download SY-905 Full Auto Tying Machine Catalog
